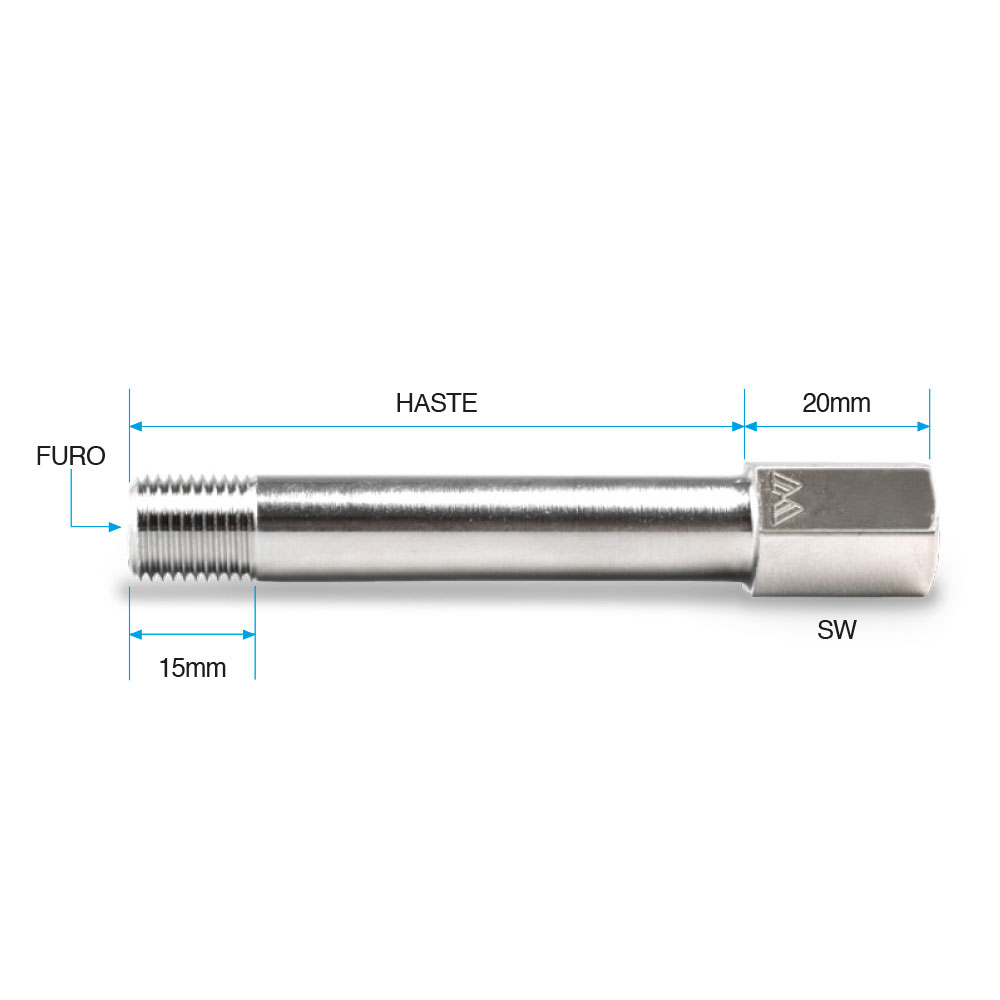

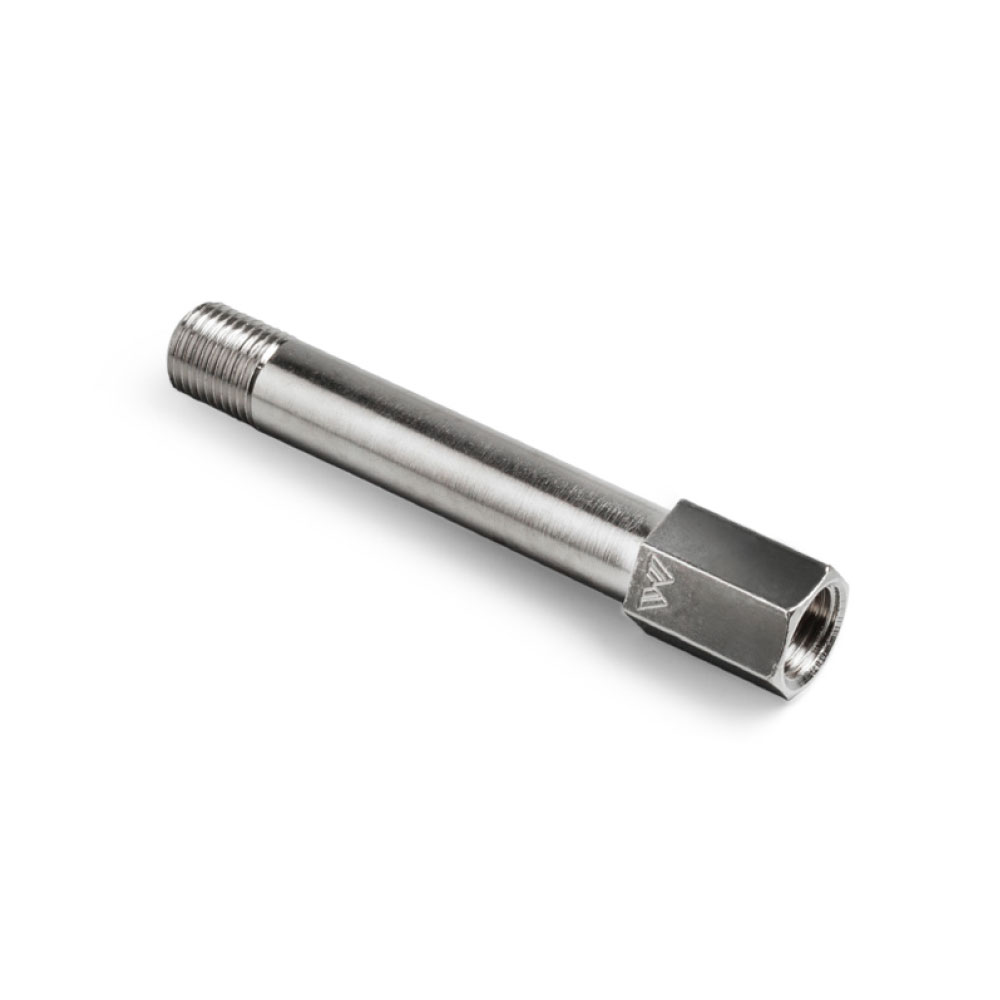

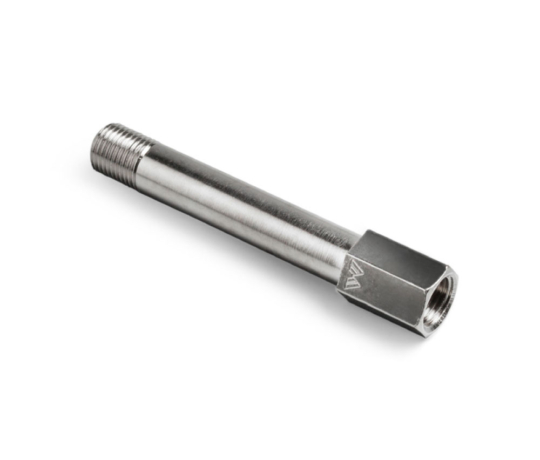

PROLONGADOR
FABRICADOS EM LATÃO.
| CÓDIGO | ROSCA (NPT) |
CÓDIGO | ROSCA (BSP) |
HASTE (mm) |
FURO (mm) |
SW |
| P25 1818N | 1/8” NPT | P25 1818B | 1/8” BSP | 25mm | 5mm | 9/16” |
| P50 1818N | 1/8” NPT | P50 1818B | 1/8” BSP | 50mm | 5mm | 9/16” |
| P75 1818N | 1/8” NPT | P75 1818B | 1/8” BSP | 75mm | 5mm | 9/16” |
| P100 1818N | 1/8” NPT | P100 1818B | 1/8” BSP | 100mm | 5mm | 9/16” |
| P125 1818N | 1/8” NPT | P125 1818B | 1/8” BSP | 125mm | 5mm | 9/16” |
| P25 1414N | 1/4” NPT | P25 1414B | 1/4” BSP | 25mm | 8mm | 5/8” |
| P50 1414N | 1/4” NPT | P50 1414B | 1/4” BSP | 50mm | 8mm | 5/8” |
| P75 1414N | 1/4” NPT | P75 1414B | 1/4” BSP | 75mm | 8mm | 5/8” |
| P100 1414N | 1/4” NPT | P100 1414B | 1/4” BSP | 100mm | 8mm | 5/8” |
| P125 1414N | 1/4” NPT | P125 1414B | 1/4” BSP | 125mm | 8mm | 5/8” |
| P150 1414N | 1/4” NPT | P150 1414B | 1/4” BSP | 150mm | 8mm | 5/8” |
| P175 1414N | 1/4” NPT | P175 1414B | 1/4” BSP | 175mm | 8mm | 5/8” |
| P50 3838N | 3/8” NPT | P50 3838B | 3/8” BSP | 50mm | 11mm | 3/4” |
| P75 3838N | 3/8” NPT | P75 3838B | 3/8” BSP | 75mm | 11mm | 3/4” |
Fabricamos conforme desenho. Consultar quantidades mínimas.
