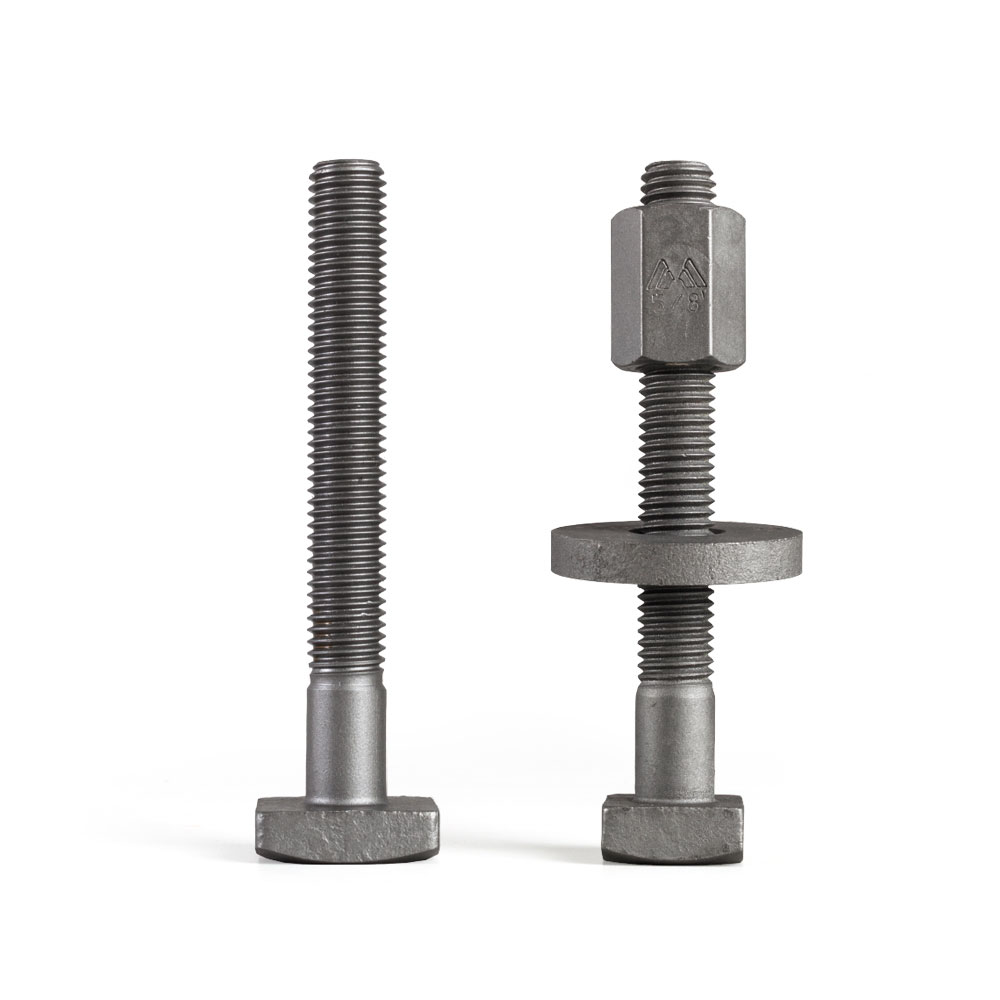

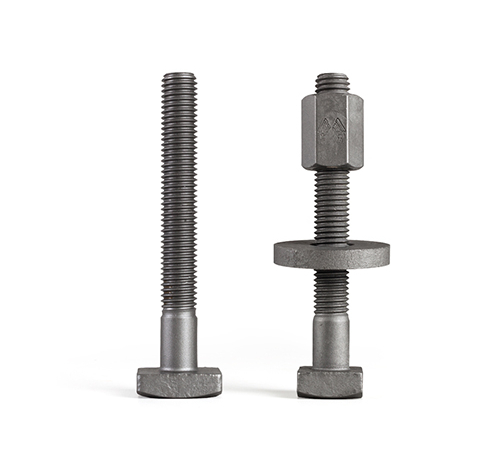

PARAFUSO CABEÇA QUADRADA

TABELAS

• Códigos de MQ 14 a MQA 216

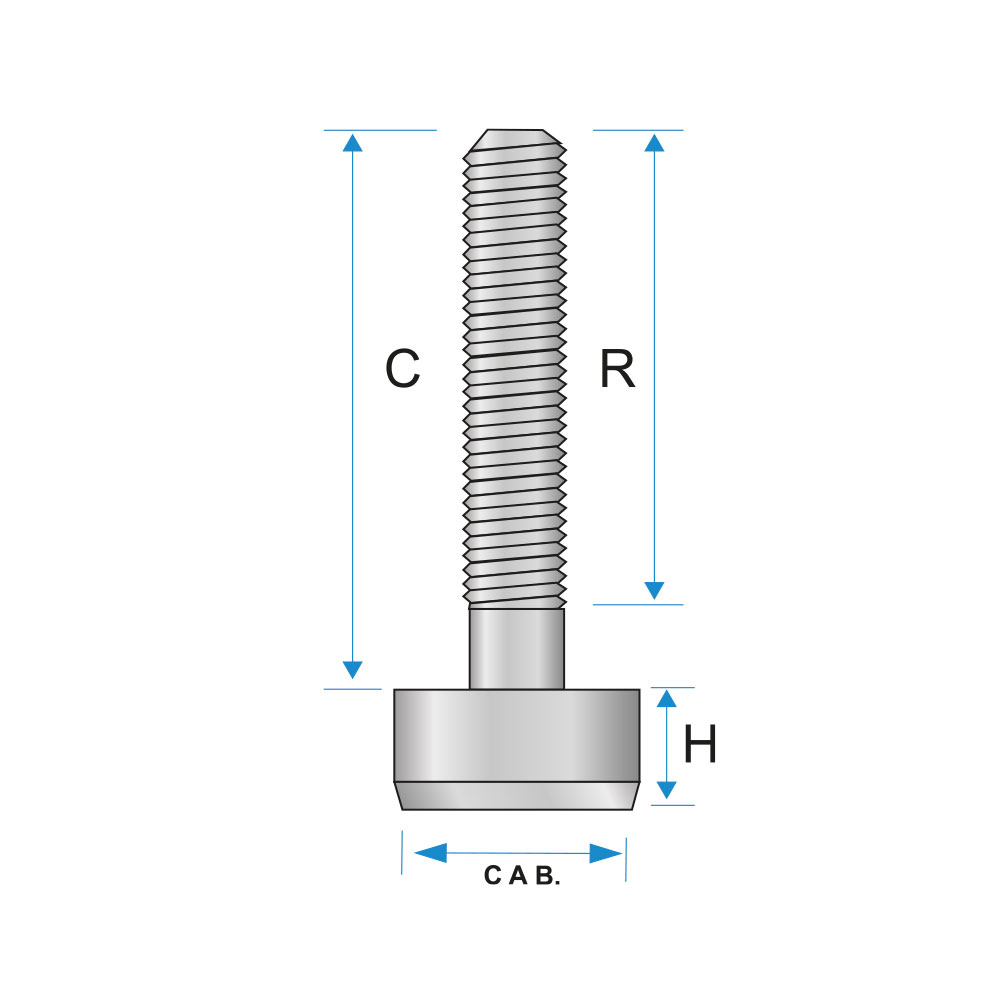

  CÓDIGOS			ROSCA	C (pol.)	H (mm)	CABEÇA (mm)
  MQ 14	MQI 14	MQA 14	1/2″	4″	9	30 X 30
  MQ 15	MQI 15	MQA 15	1/2″	5″	9	30 X 30
  MQ 16	MQI 16	MQA 16	1/2″	6″	9	30 X 30
  MQ 17	MQI 17	MQA 17	1/2″	7″	9	30 X 30
  MQ 18	MQI 18	MQA 18	1/2″	8″	9	30 X 30
  MQ 110	MQI 110	MQA 110	1/2″	10″	9	30 X 30
  MQ 24	MQI 24	MQA 24	5/8″	4″	11	36 X 36
  MQ 25	MQI 25	MQA 25	5/8″	5″	11	36 X 36
  MQ 26	MQI 26	MQA 26	5/8″	6″	11	36 X 36
  MQ 28	MQI 28	MQA 28	5/8″	8″	11	36 X 36
  MQ 210	MQI 210	MQA 210	5/8″	10″	11	36 X 36
  MQ 212	MQI 212	MQA 212	5/8″	12″	11	36 X 36
  MQ 216	MQI 216	MQA 216	5/8″	16″	11	36 X 36

• Códigos Ret Especiais de MQ 25 a MQA 38

  CÓDIGOS RET ESPECIAIS			ROSCA	C (pol.)	H (mm)	CABEÇA (mm)
  MQ 25 RET	MQI 25 RET	MQA 25 RET	5/8″	5″	11	28 X 36
  MQ 26 RET	MQI 26 RET	MQA 26 RET	5/8″	6″	11	28 X 36
  MQ 28 RET	MQI 28 RET	MQA 28 RET	5/8″	8″	11	28 X 36
  MQ 36 RET	MQI 36 RET	MQA 36 RET	3/4″	6″	13	35 X 41
  MQ 38 RET	MQI 38 RET	MQA 38 RET	3/4″	8″	13	35 X 41

• Códigos Ret Especiais de MQ 25 a MQA 520

  CÓDIGOS RET ESPECIAIS			ROSCA	C (pol.)	H (mm)	CABEÇA (mm)
  MQ 34	MQI 34	MQA 34	3/4″	4″	13	41 X 41
  MQ 36	MQI 36	MQA 36	3/4″	6″	13	41 X 41
  MQ 38	MQI 38	MQA 38	3/4″	8″	13	41 X 41
  MQ 310	MQI 310	MQA 310	3/4″	10″	13	41 X 41
  MQ 312	MQI 312	MQA 312	3/4″	12″	13	41 X 41
  MQ 314	MQI 314	MQA 314	3/4″	14″	13	41 X 41
  MQ 316	MQI 316	MQA 316	3/4″	16″	13	41 X 41
  MQ 46	MQI 46	MQA 46	7/8″	6″	16	45 X 45
  MQ 48	MQI 48	MQA 48	7/8″	8″	16	45 X 45
  MQ 410	MQI 410	MQA 410	7/8″	10″	16	45 X 45
  MQ 412	MQI 412	MQA 412	7/8″	12″	16	45 X 45
  MQ 56	MQI 56	MQA 56	1″	6″	18	45 X 45
  MQ 58	MQI 58	MQA 58	1″	8″	18	45 X 45
  MQ 510	MQI 510	MQA 510	1″	10″	18	45 X 45
  MQ 512	MQI 512	MQA 512	1″	12″	18	45 X 45
  MQ 514	MQI 514	MQA 514	1″	14″	18	45 X 45
  MQ 516	MQI 516	MQA 516	1″	16″	18	45 X 45
  MQ 520	MQI 520	MQA 520	1″	20″	18	45 X 45
